A well-fitted belt can make or break an outfit. Most people don't realize how close they are to getting that fit — just a few precise holes away.
Your favorite leather belt might be a size too loose. Maybe you've inherited a quality piece that doesn't quite work. Or you're making one from scratch. Either way, learning the belt punching process is a skill that pays off every time you get dressed.
This guide covers it all — picking the right tools, marking accurate spacing, and punching clean, sharp holes in even the thickest leather. No guesswork. No ragged edges. No regrets.

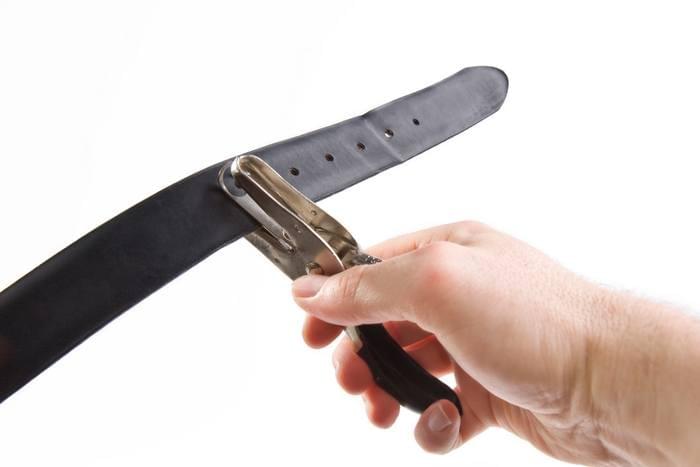

How to Punch a Single Belt Hole with a Rotary Plier Punch
The rotary plier punch is a solid tool for any leather kit. It's compact, affordable, and gets a single hole done in under two minutes. Here's how to use one the right way.
Before You Touch the Leather
Match the punch tube to your existing holes first. Rotate the wheel head until the tube diameter lines up with the holes on your belt. Not sure about the size? Go smaller. You can always step up a size, but an oversized hole can't be fixed.
No existing holes to reference? Use a caliper on your buckle prong, add 0.5 mm of clearance, and pick the closest tube size. A 3.0 mm prong needs a 3.5 mm hole. Most belt holes fall in the 1/8 to 3/16 inch range — that's 3.2 to 4.8 mm.
Your spacing mark should already be on the strap from the layout stage. If not, mark it now — one clean dot on the centerline.
The Punch Sequence
1. Set up your backing surface.
Lay the belt flat on a cutting mat or a scrap wood block. This protects your bench and keeps the leather from sliding mid-squeeze.
2. Position the punch tube over the mark.
Hold the tool straight up, perpendicular to the leather surface. Any tilt produces an oval hole instead of a round one.
3. Squeeze with steady, even pressure.
Close the handles in one controlled motion. Listen for a clean "pop" — that's the punch cutting all the way through. No jerking, no rushing.
4. For thick or dense leather over 3 mm:
Use a short sawing motion while squeezing rather than one hard crush. A single forced squeeze on heavy leather can bend the punch tube. For leather at 4 mm or above, switch to a drive punch and mallet — you'll get a much cleaner cut.
5. Clear the slug.
Open the tool and check the hole. See a small leather scrap stuck inside? Push it out with a toothpick or the tip of an awl. A blocked hole stops the buckle prong from seating properly.
Five steps, clean result. Seal the raw edge with a leather edge finish and the hole is done.
Step-by-Step: How to Punch 5 Belt Holes at Once with a Press System
Production belts don't get punched one hole at a time. Speed and consistency both matter — a 5-hole press system delivers five clean, uniform holes in a single stroke.
Tools like the HandyPress® Belt 5-Hole Positioning Punch are built for exactly this job. Standard setup: 2.5 mm punch diameter, 25 mm (1") center-to-center spacing. Five holes punch across a total span of 100 mm (4 × 25 mm). That geometry is fixed by the tool itself — not by your measuring hand.
Configure the Press Before You Touch a Belt
1. Choose your specs.
Confirm the hole diameter — 2.5 mm is standard for most buckle tongues. Then check that your spacing matches the die: 25.0 ± 0.1 mm between adjacent punches. Use a vernier caliper to verify.
2. Mount the 5-hole die block.
Seat all five hollow punches in the press ram. They must sit perpendicular to the belt surface. Tighten the clamping screws in a balanced pattern — equal pressure on each side. Any tilt or play here creates misaligned holes.
3. Set your stops.
- Back stop: positions the belt so the center punch lands at your target point — 120 mm from the belt tip is the standard for dress belts.
- Side stop: keeps the hole row parallel to the belt edge. For 30–40 mm wide belts, the hole center should land 10–15 mm from the edge.
4. Set stroke depth.
Place a nylon or softwood backing block under the punch zone. Adjust the press so the punches pass clean through the leather and enter the backing block by just 0.5–1 mm. Before running real belts, test on scrap leather of the same thickness — 3.0 to 4.0 mm veg-tan is the standard benchmark.
Punch the Belt
5. Load and align.
Lay the belt face up over the backing block. Slide the tip against the back stop until it seats. Press the edge against the side stop. Your center hole mark should sit under the center punch — check from both front and side before you press down.
6. Dry-run first.
Lower the press until the punches are just above the leather surface. Check that all five positions land across the belt width in balance. Make sure the outermost holes won't land too close to the tip or buckle end.
7. Press in one stroke.
Apply firm, steady downward pressure — no jerking. For 3–4 mm leather, a well-set mechanical press cuts clean in one full stroke. Hold full pressure for 1–2 seconds, then raise the ram.
8. Clear the slugs and inspect.
Five leather "cookies" will pack into the hollow punches. Push them out with a rod that's a hair smaller than the punch ID — do this after every 1–3 strokes. Don't let them stack up. Check each hole: the diameter should match your existing holes, and the edges should be clean. Fuzz or fraying means the punches need sharpening.
Keep the Punches Sharp
Dull punches are the top cause of ragged edges and compressed hole walls. Keep them in shape by:
- Grinding a slight internal cone with a cone grinding bit inside each punch tube.
- Cleaning up the outside cutting edge at equal intervals around the circumference.
- Applying a light coat of beeswax to punch tips before each session — it cuts friction and helps slugs eject with ease.
Resharpen or replace the punches once you need noticeably more force to press through, or once hole edges start looking compressed instead of cut.
Techniques for Clean, Round Holes in Thick Leather Belts
Thick leather punches differently than thin leather. Treat it the same way, and the holes will show it.
At 4–5 mm, leather resists compression. A dull or undersized punch crushes fibers instead of cutting them. The result: oval holes, ragged edges, or cracks spreading from the punch point. Clean, round holes in thick leather come down to three things — the right method, the right prep, and sharp tooling.
Match Your Method to the Leather
Not every tool handles thick leather the same way:

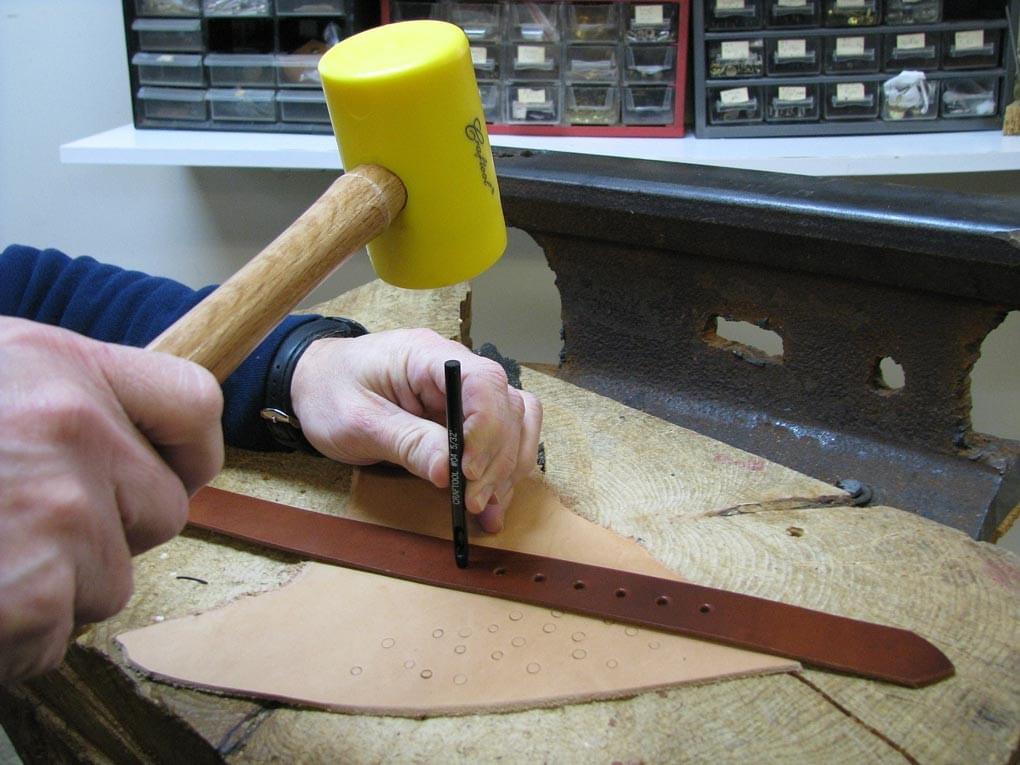

For double-layer or work belts, the drive punch wins every time. Hold it straight vertical at 90°. Strike once with a heavy mallet — firm and decisive. Light repeated taps are worse than one hard blow. They shift the punch and cause ovaling. Add a second strike only for very dense leather.
Prep the Leather Before You Punch
Very dry or stiff thick leather cracks at the hole edge under impact. A light mist of water — not soaking — relaxes the fibers. This lets the punch shear through with a clean cut. Don't over-wet it. Waterlogged leather stretches, and the hole distorts as it dries.
Always support the belt on end-grain hardwood or a dedicated punch board. That solid surface completes the shear and keeps the edge sharp. Metal or concrete underneath blows out the hole and damages punch tips.
Keep Holes Round, Not Oval
Two habits cause oval holes: tilting the punch and twisting the rotary tool mid-squeeze.
- With a drive punch — keep it at 90°, every strike.
- With a rotary punch — squeeze once, straight down, in one smooth motion. No twisting.
- Clear the leather plug from the tube after each hole. A packed tube cuts badly and makes the problem worse.
Finish the Edge
A punched hole isn't finished until the edge is sealed. Roll fine-grit sandpaper tight and run it through the hole interior. This removes any hanging fibers. Follow with a burnisher or a drop of gum tragacanth to compress the edge fibers. For dress belts, apply a thin coat of edge paint around the hole lip. You get a clean, professional finish that holds up over time.
The Sharpness Rule
Dull punches are the number-one cause of ragged, non-round holes in thick leather. Using more force than usual? Hole edges look compressed instead of cut? Sharpen or replace the punch. Dress the outside bevel with fine sandpaper or a sharpening stone — just a few light passes. Clean leather debris from inside the tube after every session.
Quality benchmark: a clean belt hole should measure within ±0.5 mm of your target diameter, show a sharp circular edge with no fiber tears, and sit within ±0.5 mm of the belt centerline. That's the standard worth holding to.
Alternative Methods Without a Leather Punch
No leather punch? The job doesn't stop. A few basic workshop tools can cut a clean, functional hole.
The Two-Hole Slot Method
Only have a utility knife and need a buckle slot? Punch or drill two round holes about 1 inch apart. Then connect them with two parallel knife cuts along the sides. You get a solid oblong slot — the closest low-tool substitute to a dedicated slot punch. On a hard surface, swap the knife for a wood chisel.
Already have one round punch? Overlap it on the existing hole and strike again. Keep going until the slot hits the length you need.
DIY Nail Punch
A basic round nail can work as a punch. File the nail head into your desired shape. Squares, triangles, and chevrons are the easiest shapes to form with clean edges. Then cut off the pointed end. The flat, filed head becomes the striking face. It won't match a commercial tool, but it cuts a recognizable, repeatable shape every time.
Using a Drill or Dremel
On thick leather where manual tools struggle, a drill with a 1/8–3/16 inch bit does the job well. The edges come out a bit fuzzy. Just follow up with fine sandpaper or a burnisher to tighten the edge fibers.
What Still Applies
No matter which method you use, keep these two things consistent:
- Leather condition: damp leather cuts the cleanest. Too dry and the edges tear. Too wet and the hole warps as it dries.
- Tool angle: hold your tool at 90° to the leather surface. Strike with one or two firm blows. Tilting causes oval cuts. Use a rawhide or poly mallet — metal hammers chew up improvised tools fast.
Put a solid wood block with a scrap leather pad underneath your work. That backing setup holds up well, even with improvised tools across the board.
Common Belt Hole Punching Mistakes and How to Fix Them
Most ruined belts share the same story: the measurement looked right, the punch felt solid, and the hole still came out wrong. These mistakes follow clear patterns. Each one has a direct fix.
Wrong Hole Size for the Buckle Tongue
Standard dress and casual belts need a 4–5 mm hole. Fashion belts with decorative tongues use 2–3 mm. The rule is simple: measure the tongue width with calipers, then go 0.5–1 mm wider. That extra clearance lets the tongue move without deforming the hole over time. On thick leather (4–5 mm), go straight to 5 mm. Undersized holes tear at the edges under regular use.
Uneven or Badly Spaced Holes
The industry standard is 25 mm (1 inch) center-to-center, five holes total. The middle hole sits 150 mm from the buckle end. Eyeballing this never works. Set your dividers to 25 mm and walk them along the centerline. Adding one hole to an existing belt? Measure center-to-center from the nearest hole. Don't estimate.
Holes Off-Center Across the Belt Width
A 1–2 mm deviation from the centerline shows up right away on 30–40 mm belts. It happens when you skip marking or let the leather shift mid-punch. Here's the fix:
Divide the belt width by two
- Scribe a centerline with a scratch awl
- Clamp the leather flat before punching
- Ragged, Fuzzy, or Mushroomed Edges
Dull punches and hard backing surfaces cause this every time. Punch on end-grain wood or a dedicated punching board — never metal or concrete. Drive the punch straight down at 90° in one firm blow. Multiple light taps shift the punch and tear fibers. After punching, run fine sandpaper or a small burnisher through the hole to clean up any loose fibers.
Your punch needs sharpening if it takes more than one or two solid blows to cut through. Also check the edges — compressed edges instead of sharp, clean cuts are another sign the punch is dull.
Oval, Stretched, or Distorted Holes
Three causes: tilting the punch, over-wetting the leather, or punching too close to the belt edge. Keep at least 2× the hole diameter between the hole center and the belt edge — for a 5 mm hole, that means ≥10 mm clearance. A hole that has already stretched oval from wear? Punch a fresh hole 25 mm away and retire the distorted one.
Cracking Around the Hole
Dry, stiff leather cracks under impact. This gets worse if the hole is undersized for the tongue. Dampen thick leather with a sponge and let it absorb for a few minutes before punching. Don't soak it. Wet leather stretches, and the hole distorts as it dries.
New Holes That Don't Match the Existing Ones
Off by more than 0.5–1 mm and the mismatch is visible. Follow these steps:
Measure the existing center-to-center spacing — it's almost always 25 mm
- Recreate that spacing with dividers
- Match the punch size to the existing holes — if they're 4 mm, use a 4 mm punch, not a close substitute
Lay a straightedge through all your marks before punching to confirm alignment
Conclusion
Punching a clean, professional belt hole isn't complicated. But it does demand the right tools, accurate measurements, and a steady hand.
Using a rotary plier punch for a single hole? You get quick, precise results. Stamping five holes at once with a press system? That gives you speed and consistency. Either way, the gap between a result that looks cheap and one that looks hand-crafted comes down to technique.
You now understand the full leather belt hole punching process — from marking spacing to fixing common mistakes. That means you have everything needed to get it right the first time.
Your next step? Grab your punch, measure twice, and commit to that first hole with confidence. Setting up a workshop or sourcing tools at scale? Explore professional-grade belt punching systems built for consistent, high-volume results.
A well-punched hole is a small detail. But it's the kind of detail people notice.
